1. Horizontal concealed high ESP ducted fan coil general description
The ceiling concealed fan coil units are of low noise, compact design. It is specially designed to cater for today's ceiling height residence, offices, light commercial applications and new or existing building air-conditioning. All fan coil units are completely factory packaged with blower fan, motor, chilled water coil, circuited and terminated pipe connections. All fan coils are completely factory assembled and ready for field installation.
|Product Type||High External Static Pressure Ducted Fan Coil Unit|
|ESP||120Pa (75Pa, 80Pa, 100Pa also optional)|
|Pipe System||2 pipes or 4 pipes|
|Cooling Capacity||9KW ~ 12.6KW (2 pipe system)|
|Heating Capacity||13.5KW ~ 18.9KW (2 pipe system)|
|Cooling Capacity||9KW ~ 12.6KW (4 pipe system)|
|Heating Capacity||6.5KW ~ 9.1KW (4 pipe system)|
2. High ESP ducted fan coil unit main parts
(3) Drain pan
(4) Water coil
(6) Optional return air plenum and filter

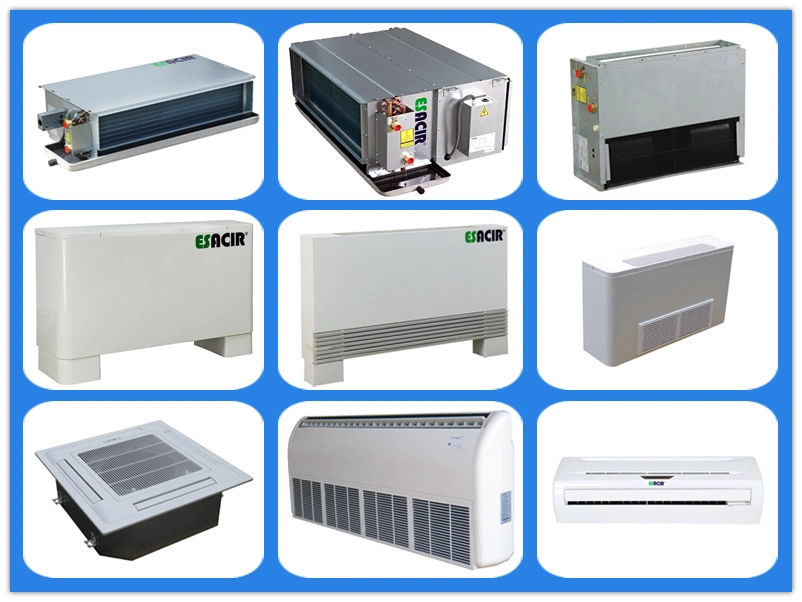

|1||Ceiling concealed fan coil unit|
|2||High ESP ducted fan coil unit|
|3||Universal concealed fan coil unit|
|4||Floor standing exposed fan coil unit|
|5||Ultra thin exposed fan coil unit|
|6||Ceiling exposed fan coil unit|
|7||Ceiling cassette fan coil unit|
|8||Ceiling exposed & floor standing fan coil unit|
|9||Wall mounted fan coil unit|
4. Ceiling horizontal concealed high static pressure fan coil unit technical specification
Please ask salesman for detailed complete data or visit our website:
|High ESP Ducted Fan Coil Unit(A Style)|
|Air flow (m3/h)||H||1700||2040||2380||1700||2040||2380|
|Rated cooling capacity||H||TH(W)||9000||10800||12600||9000||10800||12600|
|Rated heating capacity||H||W||13500||16200||18900||6500||7800||9100|
(1) Cooling: Inlet air temperature DB 27ºC,WB 19.5ºC; Chilled water inlet/outlet temp. 7ºC/12ºC.
(2) Heating: Inlet air temperature DB 20°C, heating water inlet/outlet temperature 60°C/50ºC.
Webiste 1: http://eurostarschiller.en.made-in-china.com/
Website 2: http://eurostarschiller.en.made-in-china.com/
1) With more certificate
2) Professional team with over more than 10 years industry knowledge
3) Oversea installation.
4) Customer-made accepted.
5) Diamond member of Made-In-China
6) Audited supplier by SGS
6. How to choose the fan coil?
(1) Firstly need to know the application site, for example, hotel room generally choose ceiling concealed fan coil, restaurant generally choose ceiling cassette fan coil, it depends on site requirements.
(2) If need to calculate cooling capacity, please get the acreage data.
(3) Confirm the pipe system: 2 pipe or 4 pipe according to the cooling and heating source.
(1)Tell clients how to use our products and matters needing attention.
(2)Guide clients to choose the best and economic product, recover the investment within short time.
(3)Site inspection if client require.
(1)Quality control must be inspect strictly.
(2)In accordance with the agrements stipulated in the contract.
(1)If the project needs our installation guidance, we can send our engineer and translator. We can also send customers installation video to teach them how to fix and operate with our product.
(2)Usually, our product warranty is 12 months since BL date, within this warranty period, all parts broken will be responsible for our factory.
For bulk order, our standard package is carton or honeycomb packing for fan coil, for safe delivery and easy to load/unload, we will stack several layers together with plastic film and packing straps tightly onto the plywood or plastic pallets.
For sample order, we generally use plywood box or honeycomb cardboard to protect.
9. Customers visit
10. Fan coil unit projects
We exported fan coils to Serbia, Romania, Greece, France, South Africa, Australia, Uzbekistan, Mexico, Argentina, etc..
